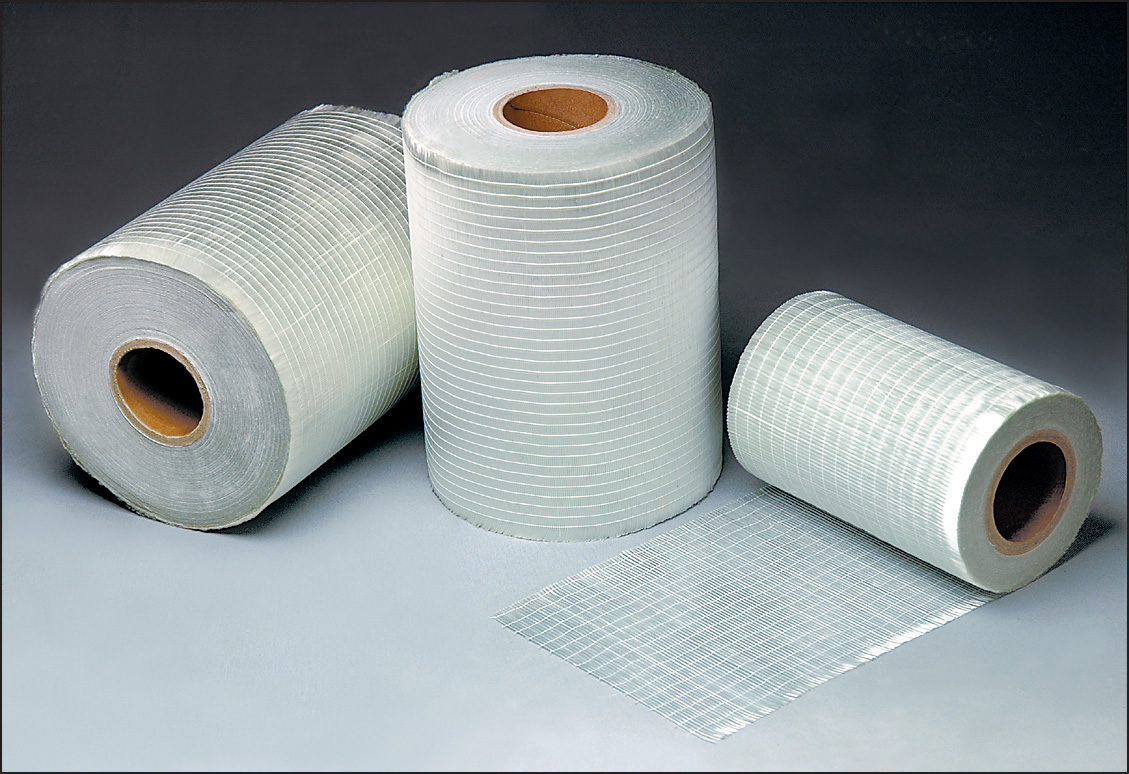

Weft Unidirectional Fabric



DESCRIPTION:It is a kind of fabric that only using 90 degree directional strength,which called as knitted weft unidirectional fabric(90Deg.)The commonly specification is 3 warp knitted yarns for each inch.It can be chosen among 1,2,3,6,9 per inch.

PRODUCT PROPERTIES:
● High directional strength ● Quick Wet out

APPLICATION:
Used in winding,such as FRP pipe,FRP tank, FRP chimney, rod material,pole material, ,water tower,vessel and others pultrusion tenchnics reinforcement width direction.

SPECIFICATION:


STYLE

MASS(g/m2)

MASS   (oz/yd2)

ROLL  LENGTH
(m)

WIDTH
(cm)

ROLL WEIGHT
(kg)

RESIN COMPATIBILITY

EDW227

227

6.7

300

22

15

UP or Epoxy resin

EDW350

350

10.3

200

25

17.5

UP or Epoxy resin

EDW450

450

13.3

140

30

18.9

UP or Epoxy resin

EDW550

550

16.2

100

30

16.5

UP or Epoxy resin

EDW800

800

23.6

70

30

16.8

UP or Epoxy resin

NOTE:Width can be cut according to the customers’ requirements,combining the chopped strand mat or veil is available.
